QYEQ（X、M）Power Cable for Electric Submersible Pump-Shandong Guangxing Group

·Position：Home > QYEQ（X、M）Power Cable for Electric Submersible Pump

Number：10139183216
Name：QYEQ（X、M）Power Cable for Electric Submersible Pump
Classification： ESP POWER CABLE > ESP power cable - Flat
Date：2016/10/13 9:18:32
Views：896

Details

A、Description

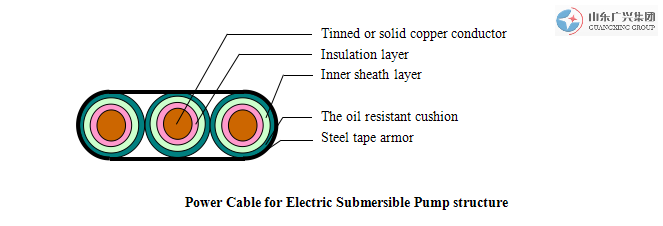

Solid copper conductor,EPDM insulation,Compound jacket with Lead,synthetic braid covered completely over the lead sheath,Full galvanized steel(or stainless or Monel)tape armor.

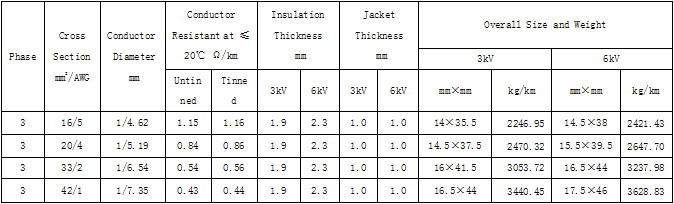

B、Specification and Parameters

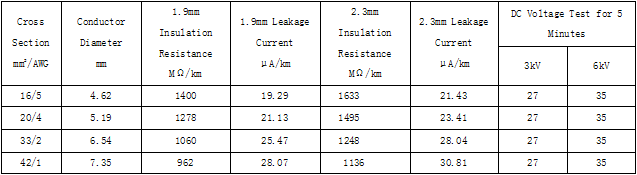

C、Index of Performance
