QYPF（X、M）Power Cable for Electric Submersible Pump-Shandong Guangxing Group

·Position：Home > QYPF（X、M）Power Cable for Electric Submersible Pump

Number：10139203416
Name：QYPF（X、M）Power Cable for Electric Submersible Pump
Classification： ESP POWER CABLE > ESP power cable - Flat
Date：2016/10/13 9:20:34
Views：654

Details

A、Description

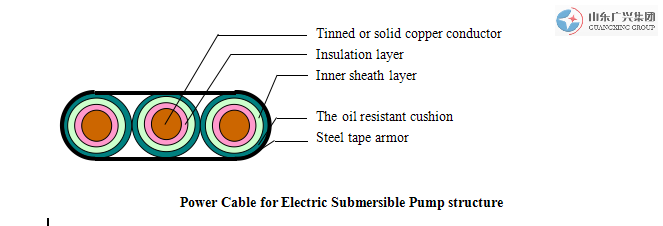

Tinned solid copper conductor,Polypropylene insulation,Compound jacket with Nitrile-PVC,Fluoropolymer tape or Polyester film and synthetic braid covered completely over the lead sheath,Full galvanized steel(or stainless or Monel) tape armor.

B、Specification and Parameters

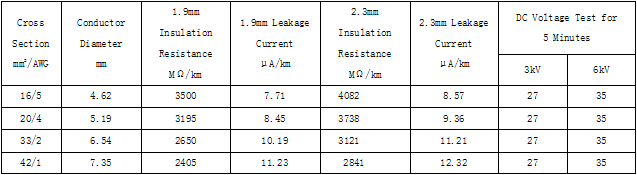

C、Index of Performance
