QYENY（X、M）Power Cable for Electric Submersible Pump-Shandong Guangxing Group

·Position：Home > QYENY（X、M）Power Cable for Electric Submersible Pump

Number：10139262616
Name：QYENY（X、M）Power Cable for Electric Submersible Pump
Classification： ESP POWER CABLE > ESP power cable - Round
Date：2016/10/13 9:26:26
Views：1115

Details

A、Description

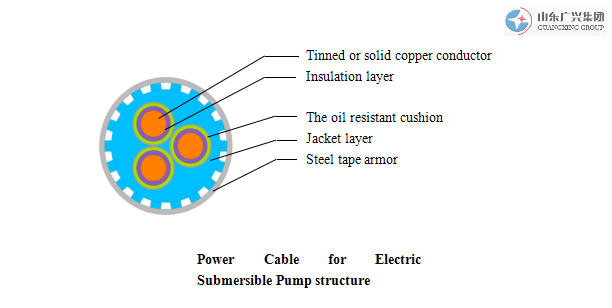

Solid copper conductor,EPDM insulation,Nitrile rubber jacket,Fluoropolymer tape or Polyester film and synthetic braid covered completely over the lead sheath,Full galvanized steel(or stainless steel or Monel) tape armor.

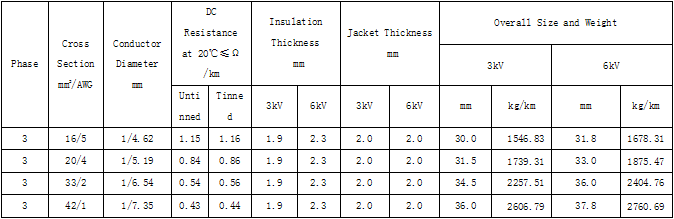

B、Specification and Parameters

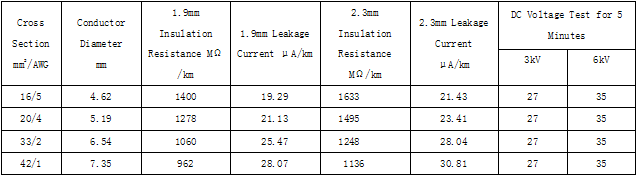

C、Index of Performance
