·Position：Home > QYJYEQ(X、M) Submersible Connection of Power Cable

Number：10139122116
Name：QYJYEQ(X、M) Submersible Connection of Power Cable
Classification： ESP POWER CABLE > Motor Lead Extension Cable
Date：2016/10/13 9:12:21
Views：825

Details

A、Description:

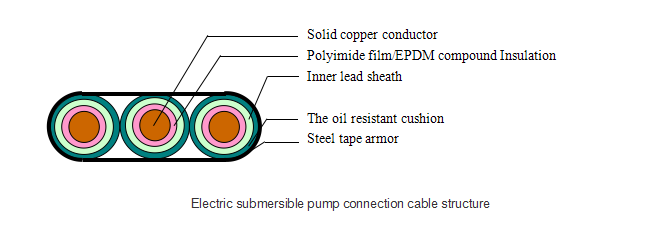

Compound insulation with polyimide film and EPDM rubber,Inner lead sheath,Fluoropolymer tape and synthetic braid covered completely over the lead sheath,Full galvanized steel(or stainless steel or Monel) tape armor.

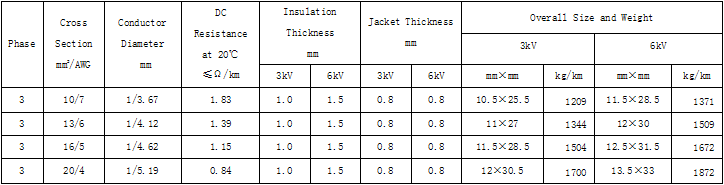

B、Specification and Parameters

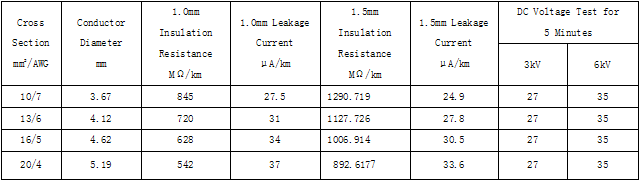

C、Index of Performance
