A、Description

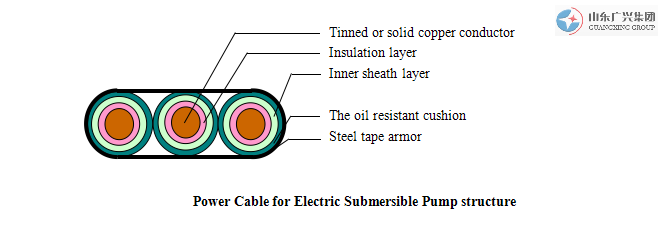

Solid copper conductor,Compound insulation with polyimide film and EPDM rubber,Inner lead sheath，Synthetic braid covered completely over the lead sheath,Full galvanized steel(or stainless or Monel)tape armor.

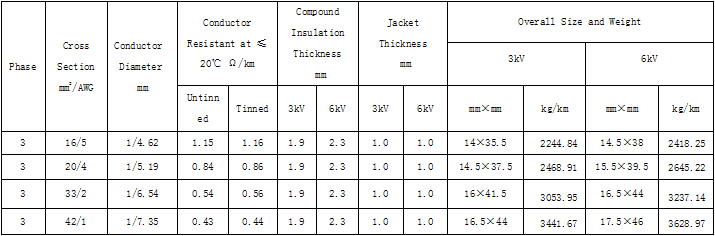

B、Specification and Parameters

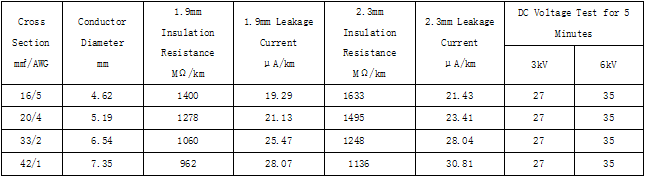

C、Index of Performance
