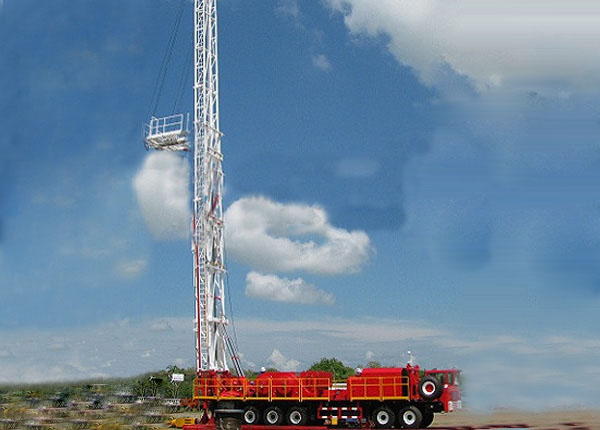

The drilling and workover rig is a single-engine high-power self-propelled drilling and workover rig, a chassis adopts a 12*8 drive mode, a power set adopts Carterpillar diesel engine and Allison transmission, and a winch adopts a double-roller structure. The maximum hook load is 1,580kN. A derrick has a rectangular pipe gantry two-section suit structure and is equipped with a racking platform. The whole rig can be optionally equipped with drilling parts such as a turntable, a drilling platform and a water faucet, and can independently finish drilling operation.
◆ 35m two-section hydraulic lifting telescopic derrick
◆ CAT C18 engine and Allison M6610 transmission to achieve stable and reliable performance
◆ 12*8 self-propelled chassis, unilateral single-seat cab and heater
◆ Main roller: ATD324 push disc clutch; auxiliary brake system: pneumatic control disc brake
◆ Anti-collision ring valve type crown block protector and electronic crown block protector
◆ Longitudinally arranged two-layer worktable fingerboards, adjustable fingerboard distance, climb assist and escape device
◆ All gas circuit pipelines: FESTO quick joints and pipelines
◆ 24V DC meter system and external AC powered lighting system
|
Product model |
XJ650 (120t) |
||
|
Nominal minor repair depth |
Φ73mm (2-7／8”Thickened oil pipe) |
m |
8500 |
|
Nominal major repair depth |
Φ73mm (2-7／8”Drill rod) |
m |
7000 |
|
Φ88.9mm (3-1/2”Drill rod) |
m |
5500 |
|
|
Φ114mm (4-1/2”Drill rod) |
m |
4200 |
|
|
Drilling depth |
m |
2500 |
|
|
Rated hook load |
kN |
1200 |
|
|
Maximum hook load |
kN |
1580 |
|
|
Engine model |
|
CAT C18 |
|
|
Engine power |
kW (hp) |
469 (630) |
|
|
Transmission model |
|
Allison M6610 |
|
|
Chassis drive mode |
|
12×8 |
|
|
Approach angle/departure angle |
|
25°/16° |
|
|
Minimum ground clearance |
mm |
310 |
|
|
Derrick height |
m |
35 |
|
|
Derrick form |
|
front opening two-section hydraulic lifting telescopic |
|
|
Effective number of ropes |
|
8 (4×5) |
|
|
Diameter of lifting steel wire rope |
mm |
Φ29 |
|
|
Dimensions in transportation state（Length*width*height） |
m |
19.90×3.10×4.37 |
|
|
Total weight |
kg |
55000 |
|
|
Roller form |
|
single roller/double rollers |
|
|
Main roller auxiliary brake |
|
|
|
|
pneumatic control disc brake |
|||
