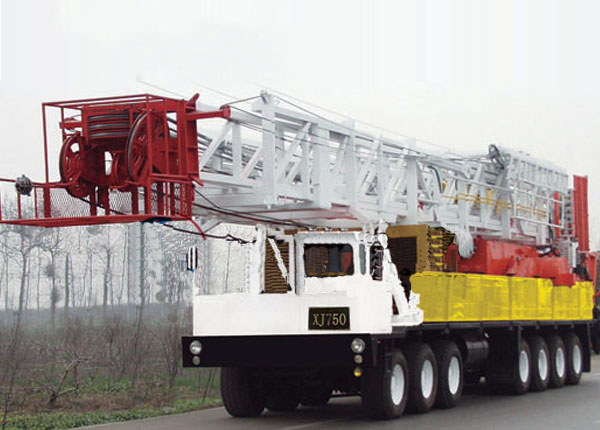

XJ750(150t) Workover Rig is special equipment for oil field drilling and workover, a chassis adopts a 10*8 drive mode, a power set adopts Carterpillar diesel engine and Allison transmission, and a winch adopts a double-roller structure. The maximum hook load is 1,350kN. A derrick has a rectangular pipe gantry two-section suit structure, is 35m high and is equipped with a racking platform. The whole rig can be optionally equipped with drilling parts such as a turntable, a drilling platform and a water faucet, and can independently finish drilling operation.
◆ 35m two-section hydraulic lifting telescopic derrick
◆ CAT C15 engine and Allison M5610AR transmission to achieve stable and reliable performance
◆ 10*8 self-propelled chassis, unilateral single-seat cab and heater
◆ Main roller: ATD324 push disc clutch; auxiliary brake system: pneumatic control disc brake
◆ Anti-collision ring valve type crown block protector and electronic crown block protector
◆ Longitudinally arranged two-layer worktable fingerboards, adjustable fingerboard distance, climb assist and escape device
◆ All gas circuit pipelines: FESTO quick joints and pipelines
◆ 24V DC meter system and external AC powered lighting system
|
Product model |
XJ750 (150吨) |
||
|
Nominal minor repair depth |
Φ73mm (2-7／8”Thickened oil pipe) |
m |
－ |
|
Nominal major repair depth |
Φ73mm (2-7／8”Drill rod) |
m |
8000 |
|
Φ88.9mm (3-1/2”Drill rod) |
m |
6500 |
|
|
Φ114mm (4-1/2”Drill rod) |
m |
5000 |
|
|
Drilling depth |
m |
3000 |
|
|
Rated hook load |
kN |
1500 |
|
|
Maximum hook load |
kN |
1700 |
|
|
Engine model |
|
CAT C15 ACERT AIII × 2 |
|
|
Engine power |
kW (hp) |
403 (540) × 2 |
|
|
Transmission model |
|
Allison M5610HR × 2 |
|
|
Chassis drive mode |
|
14×8 |
|
|
Approach angle/departure angle |
|
33°/17° |
|
|
Minimum ground clearance |
mm |
285 |
|
|
Derrick height |
m |
38 |
|
|
Derrick form |
|
front opening two-section hydraulic lifting telescopic |
|
|
Effective number of ropes |
|
10 (6×5) |
|
|
Diameter of lifting steel wire rope |
mm |
Φ29 |
|
|
Dimensions in transportation state（Length*width*height） |
m |
22.2×3.1×4.45 |
|
|
Total weight |
kg |
76000 |
|
|
Roller form |
|
single roller/double rollers |
|
|
Main roller auxiliary brake |
|
pneumatic control disc brake |
|
