QYYEEY（X、M）Power Cable for Electric Submersible Pump-Shandong Guangxing Group

·Position：Home > QYYEEY（X、M）Power Cable for Electric Submersible Pump

Number：10139231716
Name：QYYEEY（X、M）Power Cable for Electric Submersible Pump
Classification： ESP POWER CABLE > ESP power cable - Round
Date：2016/10/13 9:23:17
Views：817

Details

A、Description

Solid copper conductor,Compound insulation with polyimide film and EPDM rubber,EPDM rubber jacket,Fluoropolymer tape or Polyester film and synthetic braid covered completely over the lead sheath,Full galvanized steel(or stainless steel or Monel)tape armor.

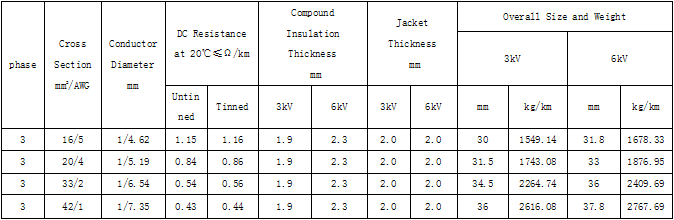

B、Specification and Parameters

C、Index of Performance
