QYPFY（X、M）Power Cable for Electric Submersible Pump-Shandong Guangxing Group

·Position：Home > QYPFY（X、M）Power Cable for Electric Submersible Pump

Number：10139271016
Name：QYPFY（X、M）Power Cable for Electric Submersible Pump
Classification： ESP POWER CABLE > ESP power cable - Round
Date：2016/10/13 9:27:10
Views：851

Details

A、Dscription

Tinned solid copper conductor,Polypropylene insulation,Compound jacket with Nitrile-PVC,Full galvanized steel(or stainless steel or Monel) tape armor.

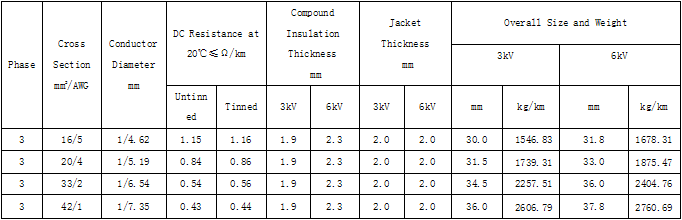

B、Specification and Parameters

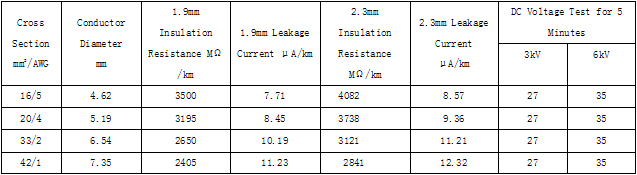

C、Index of Performance
